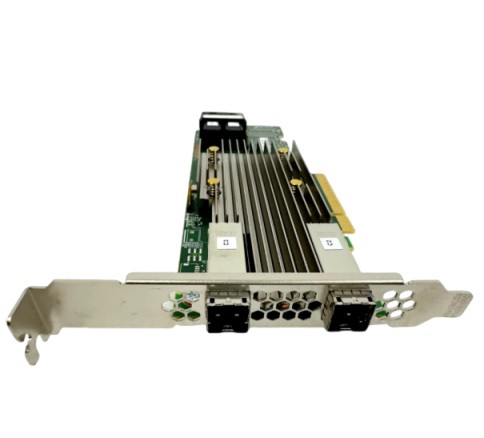

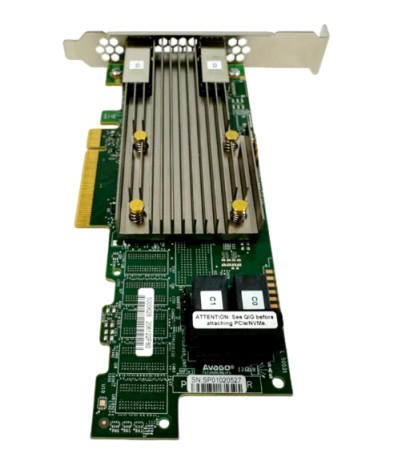

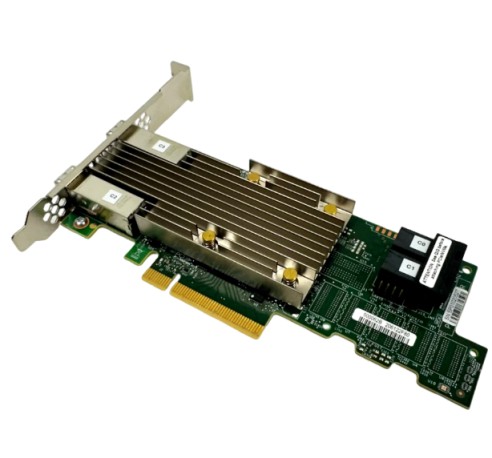

9400 Series Tri-Mode Storage HBAs
12Gb/s SAS/SATA/NVMe Tri-Mode PCIe HBAs
Industry’s First HBA with Tri-Mode SerDes Technology
Broadcom enables high performance storage connectivity and flexible
system designs that support any combination of NVMe, SAS and SATA
devices with the industry’s first HBA with Tri-Mode SerDes. The Tri-Mode
HBAs expand Broadcom’s industry leading family of 12Gb/s SAS HBAs with 8 and 16 port internal, external and combination Tri-Mode port options.
NVMe Performance Gains for Storage
The Tri-Mode Storage HBAs bring NVMe performance benefits to the
storage tier by providing connectivity and data protection that HBAs have offered for over 20 years for SAS/SATA interfaces. Based on the single-
core SAS3516, SAS3416, or SAS3408 Tri-Mode Storage I/O controllers (IOC), these HBAs provide bandwidth and IOPS performance increase compared to the previous generation and are ideal for high-end servers utilizing internal storage or connecting to large-scale external storage enclosures.
Endless Design Flexibility Using Tri-Mode Controllers
Broadcom Tri-Mode SerDes Technology enables the operation of NVMe, SAS, or SATA storage devices in a single drive bay. A single controller
can operate in all three modes concurrently servicing NVMe, SAS, or
SATA drives. The controller negotiates between the speeds and protocols to seamlessly work with any of the three types of storage devices. Tri-
Mode support provides a non-disruptive way to evolve existing data
center infrastructure. By upgrading to a Tri-Mode HBA, users can expand beyond SAS/SATA and use NVMe without major changes to other system configurations.
