SAS 9305
12Gb/s SAS Host Bus Adapter Family
Overview
The SAS 9305 16-port and 24-port, 12Gb/s SAS HBA family provides increased connectivity and maximum performance for high-end servers and appliances with internal storage or when connecting to large-scale storage enclosures.
The SAS 9305 HBA family is based on either the SAS 3216 or 3224 IO controller that integrates the latest enhancements in SAS and PCI Express® technology. The adapters can deliver more than 1 million IOPs. The HBAs support up to 24 SAS ports operating at 12Gb/s data transfer rates. The HBA family supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specification. The adapters are backwards compatible with the previous SAS and PCIe generations through automatic negotiation and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane and SATA data transfer rates of 6 and 3Gb/s per lane. Avago provides a broad suite of industry standard operating system drivers.
Avago Storage Solutions
Avago Limited products serve four primary target markets: wireless communications, wired infrastructure, enterprise storage, and industrial and other. Avago has the industry’s broadest portfolio of storage solutions, backed by decades of experience and trusted by the world’s leading server and storage suppliers. Avago provides the building blocks for storage solutions that help customers understand, prioritize, store and protect critical data.
The Avago 12Gb/s SAS portfolio includes MegaRAID controller cards, HBAs, advanced software options, Syncro shared DAS solutions, and SAS storage ICs, including RAID-on-Chip (ROCs), I/O controllers and expanders.
Fusion-MPT™ Architecture
Avago SAS HBAs are based on Fusion-MPT architected SAS controllers, which implement the Fusion-MPT (Message Passing Technology) architecture. Each controller features embedded PowerPC™ processors that help deliver maximum host CPU offload. The built-in intelligence enables Avago to publish a single binary OS driver to operate any Fusion- MPT controller or adapter. The architecture helps enable high performance, reduced software development, and faster time to market.

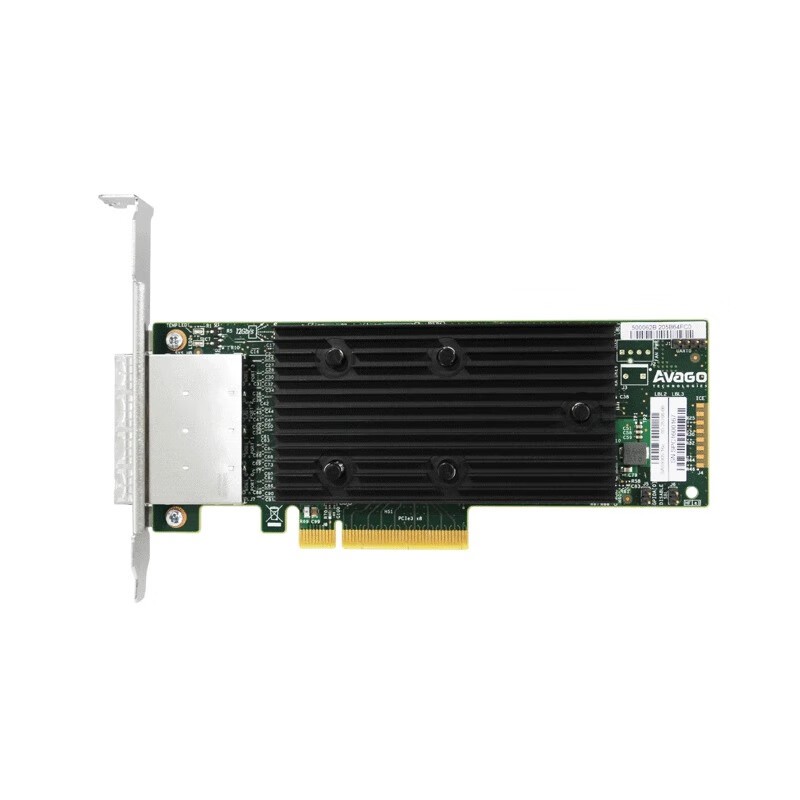

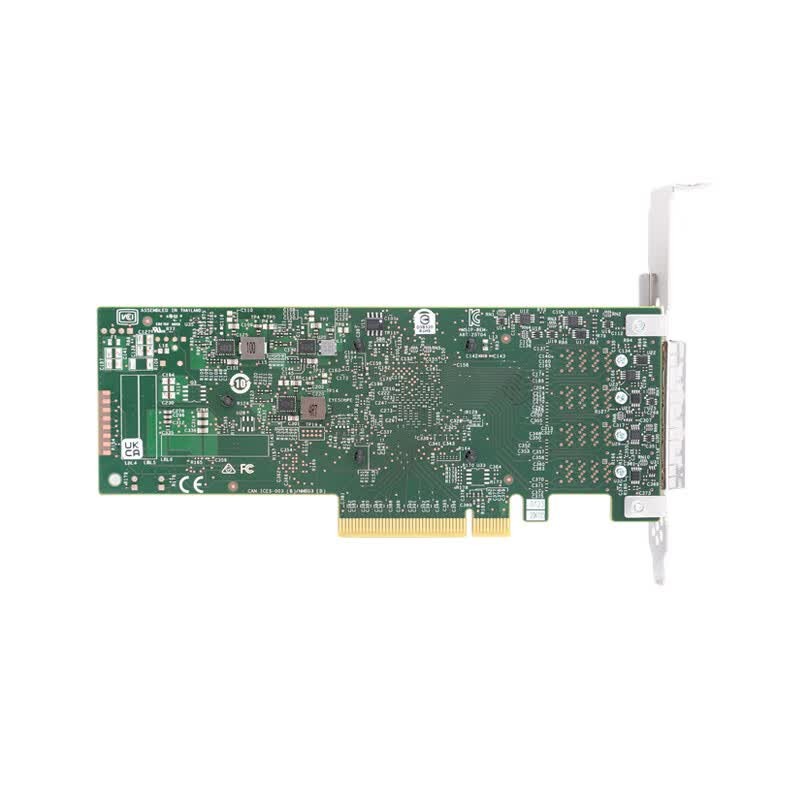

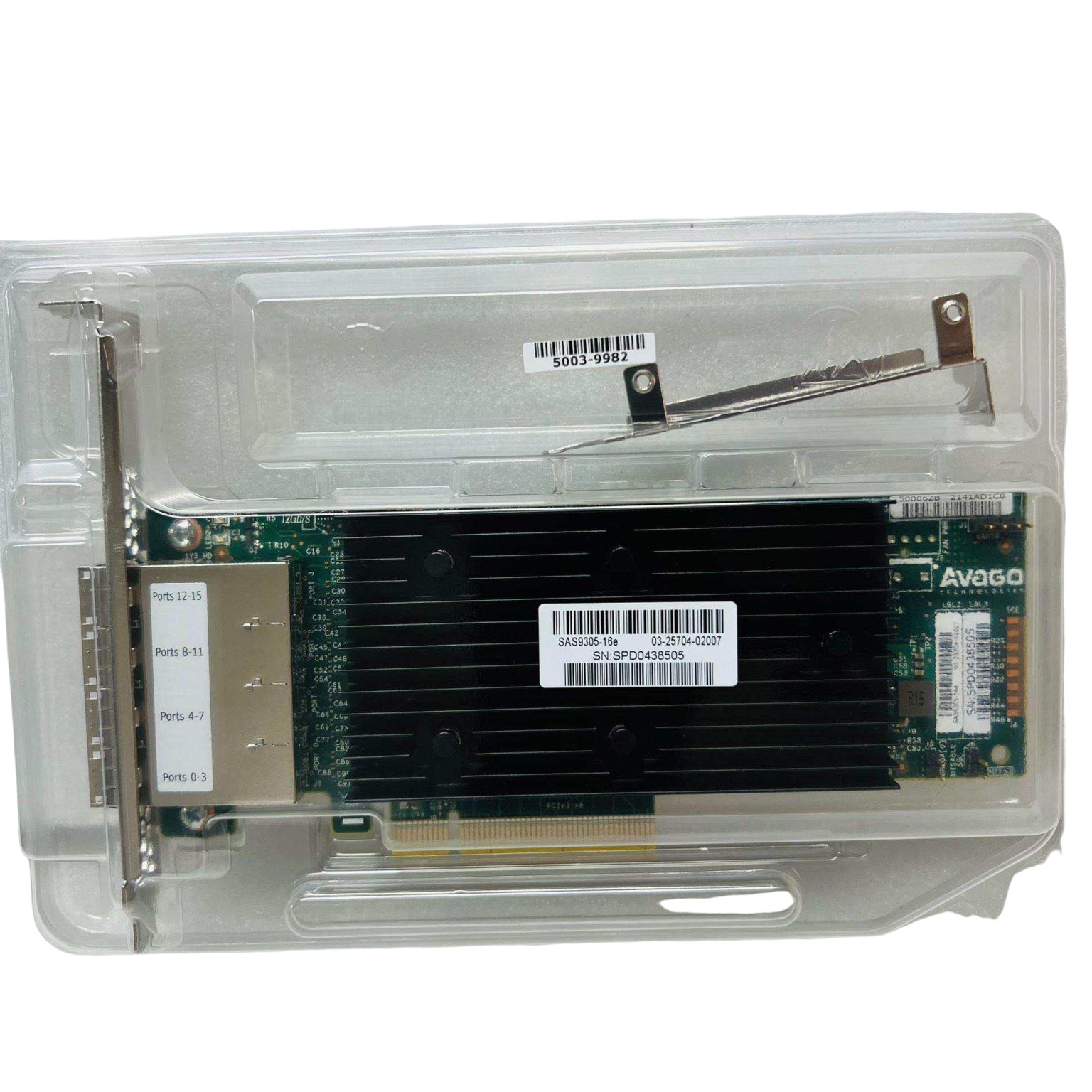

| SAS 9305-16e |
IO Controller | SAS 3216/ Fusion MPT 2.5 |
Port Count | 16-port, external |
Connectors | Mini-SAS HD SFF8644 Four (x4) |
Storage Connectivity Data Transfer Rates | 12Gb/s SAS 3.0 Compliant |
SAS Bandwidth | 1200 MB/s per port (each direction) |
| 16 ea, x1 ports (individual drives) 4 ea, x4 wide ports |
|
|
Port Configurations | 2 ea, x8 wide ports |
Host Bus | x8 lane, PCIe 3.0 |
PCI Data Burst Transfer Rates | Half Duplex |
|
x8, PCIe 3.0, 8000 MB/s |
Form Factor | Low Profile |
Physical Dimensions | 6.600” x 2.712” |
|
( 167.65mm x 68.90mm) |
Brackets | Low Profile & Full Height |
Cable Support | Passive Copper, Active Copper, Active Optical |
LED Management | SES |
Operating Voltage | +12V +/-8%; 3.3V +/-9% |
Power** | Typical: 13.0 |
Device Support | 1024 Non-RAID devices |
| Operating: 0°C to 55°C Storage: -45°C to 105°C |
|
|
Environmental | 5 to 90% non-condensing |
|
|
| Airflow: 200 LFM |
MTBF | >3,500,000 hours at 40°C |
| USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438) ; Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22);Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/ IEC/UL 60950; RoHS; WEEE |
|
Regulatory Certifications |
| Microsoft Windows, Linux (Oracle, SuSE , Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical, Citrix, FreeBSD, Fedora, Debian |
|
OS Support | See http://www.avagotech.com/support/download-search for details on versions. Contact Oracle support for Oracle driver or software support.. |
Warranty | 3 years; with advanced replacement option |
|
Free technical support at http://www.avagotech.com/support
|
*Top edge connector cable exit extends into full height card area.
**Typical: Nominal Silicon and Voltage, All Links Running Maximum IOs, 25C Ambient
